Daytona Velona48 Analogue Speedo & Tacho Gauge Set

$ 45900 AUD
Write a review
| Ask a question
Gauge: Tacho 9000rpm + Speedo 200km/h

Description

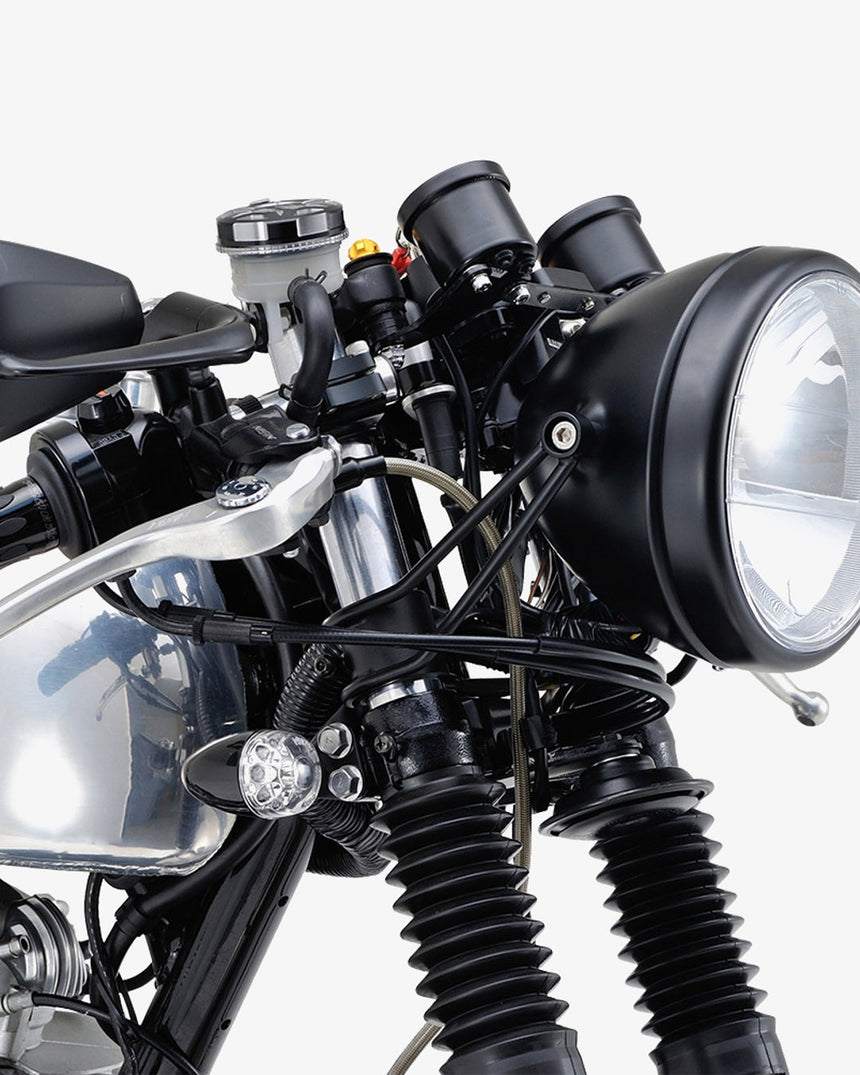

Made in Japan, the Daytona Velona Gauges are a superb high quality gauge, featuring a digital input with a classic styled analog gauge face and 3 options for backlighting. This Daytona Velona 48 set includes two gauges, the Daytona 48 Speedo featuring a 200km/h speed range and choose from either the 9,000rpm or 15,000rpm Daytona Velona 48 Tacho. Compact and versatile, the Daytona Velona 48 gauges are perfect for a range of custom motorcycles from vintage rebuilds to staunch street fighters, especially those requiring a tight fit or subtle gauge placement. Supplied with a small mounting bracket the Daytona Velona gauges are easily mounted off your top yoke, headlight bracket or hung out the side of your tank.

Specifications

  • Features
    PACKAGE CONTENTS:
    1x Speedometer (200km/h)
    1x Tachometer Gauge of your choice (9,000rpm or 15,000rpm)
    Mounting brackets
    Additional wiring
    Installation instructions

    TACHO SPECIFICATIONS:
    Stepping motor-driven tachometer
    Shift up warning with Red LED
    Voltmeter, Range: 0-18.0V
    LCD screen shows max rpm memory and recall
    Display LED colour selectable (White / Blue / Orange)
    Steel chromed stay supplied

    SPEEDO SPECIFICATIONS:
    Stepping motor-driven speedometer
    Speed unit (km/h or MPH) selectable
    Up to 200 Km/h or 200 MPH
    Odometer (Not Re-settable), Range: 0.0-99,999.9 km/mile
    Trip Odometer 1 (Re-settable), Range: 0.0-99,999.9 km/mile
    Trip Odometer 2 (Re-settable), Range: 0.0-99,999.9 km/mile
    Voltmeter, Range: 0-18.0V
    Maximum speed memory and recall
    Display LED colour selectable (White / Blue / Orange)
    E-marked
    Steel chromed stay supplied

    NOTES
    Compatible with the DAYTONA CNC machined toggle switch. The velona48 can also be mounted with the anti-vibration combination stay kit which also mounts the ALPHA / BETA LED lights (purchased separately).

    If the bike has a standard electronic signal for the tachometer, this Tacho can be connected to this original rpm pulse signal (*in most cases - but not all).
    If the bike is not equipped with a standard electronic signal for RPM, please use the suitable wiring method for the bike model (e.g., interrupt wire etc.)
    If the bike has no rpm signal source or is very unstable consider the use of DAYTONA - TACHOMETER PULSE GENERATOR - 92333 or the optional harness 98641.
    *NOTE This gauge is not suitable for 6-volt use and it is *NOT suitable for battery lesser fitted bikes.
  • Material
    Aluminium
  • Certification
    Australian Road Compliant

Fitment

Universal
