Motogadget

Motogadget Motoscope Mini

$ 42999 AUD
Include Combi Frame Kit: No

Description

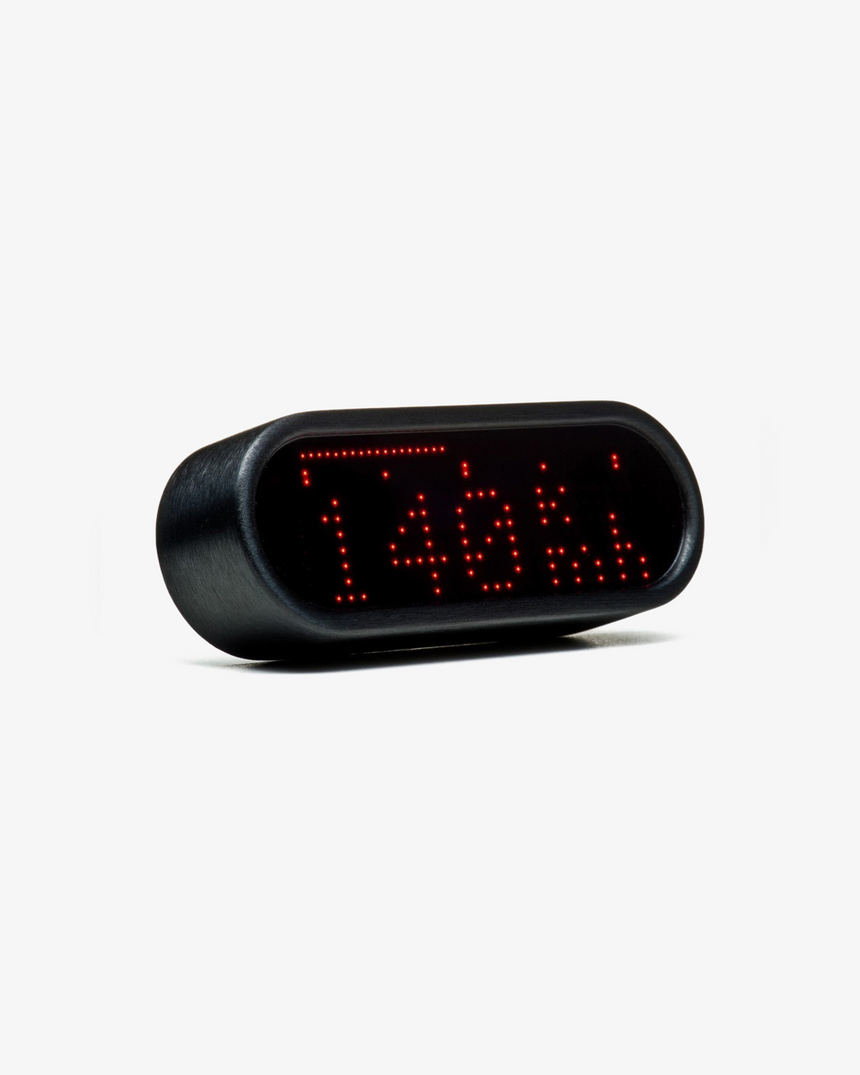

The unadorned and elegant design of the Motoscope Mini Digital Speedo and Tacho suits every custom motorcycle. The LED display of the Motoscope Mini is unique, 251 ultra bright LEDs provide an extremely readable display surface with minimal casing dimensions. The Motoscope Mini is tiny, measuring just 59mm x 21.5mm x 13mm. The high-quality aluminium casing is machined from solid metal and is available in anodized black. As the electronics are completely moulded-in the Motoscope Mini is immune to weather, water, dust and vibrations, so it can be mounted anywhere. When we say anywhere, we mean truly anywhere as the display of the Motoscope Mini not only displays numeric values from left to right but from top to bottom as well. Exposed mounting will reinforce a boss style, but it can also be installed more discreetly inside a housing - with the Mini, everything is possible.

Specifications
  • Features
    Length/Width/Depth: 59 mm/21.5 mm/13 mm
    Weight: approx. 32 g
    Mounting: 2 x M3 threaded hole
    Power consumption, operating: aprx100 mA (load dependent)
    Operating voltage: 7 V - 18 V
    Operating temperature: -20°... +80°C
    Rev counter (LED bargraph): 0 – 6, 8, 10 krpm
    Rev counter (numeric): 0 – 20 krpm
    Threshold adjustment/gear shift flash: 0 – 20000 rpm
    Speedometer: 0 – 999 km/h or mi/h
    Trip meter: 0 – 999.99 km or mi
    Total distance (adjustable): 99999 km or mi max.
    Travel time display: 0 – 99:59 h/min

    MOUNTING KIT UPGRADE

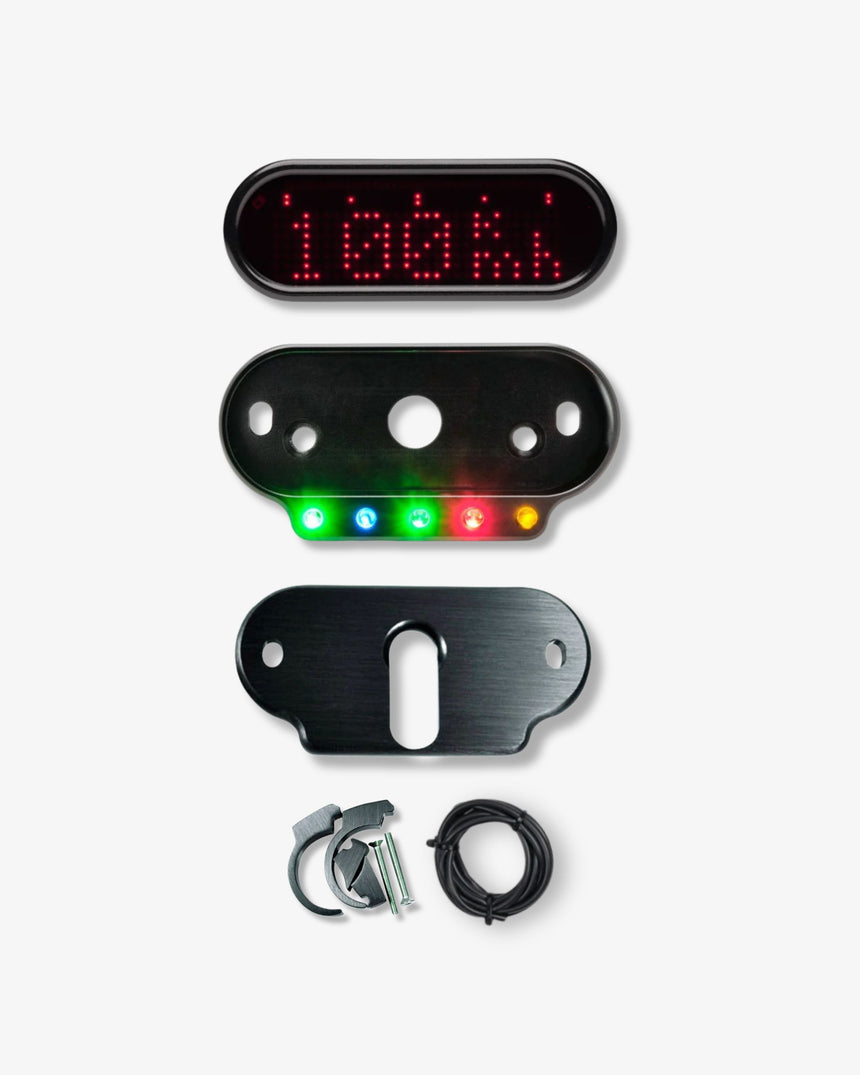

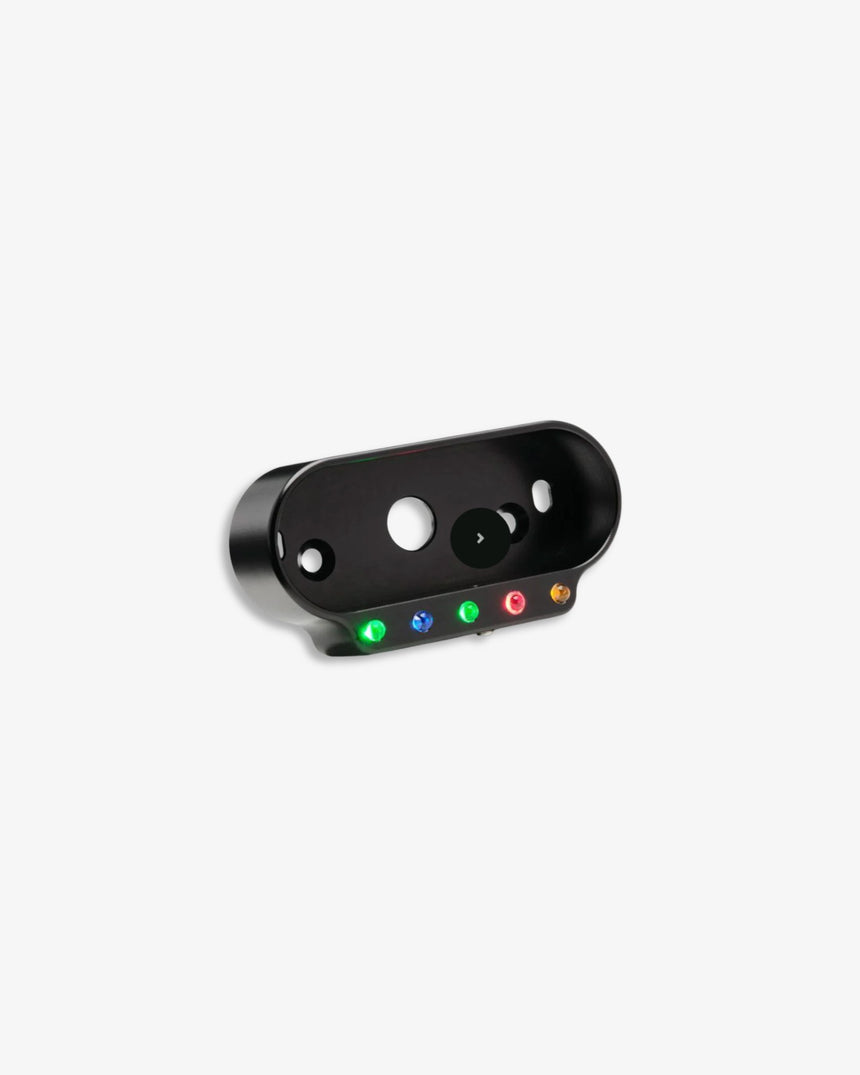

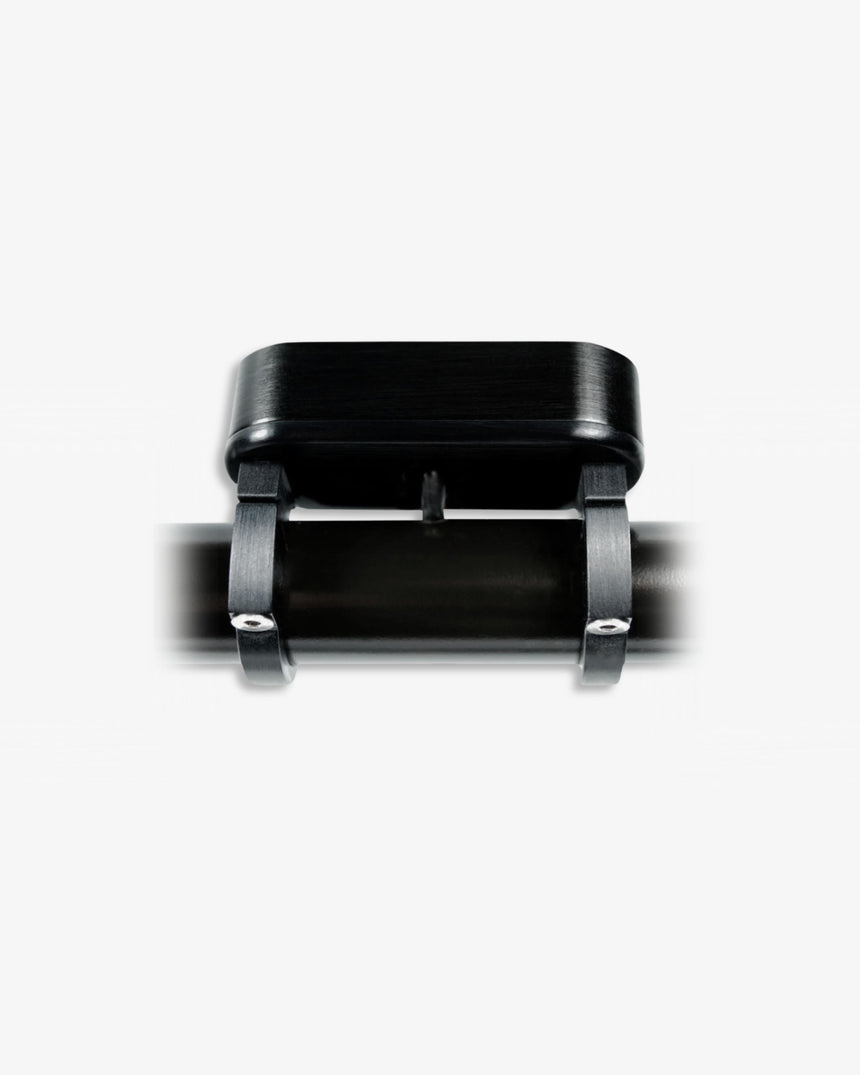

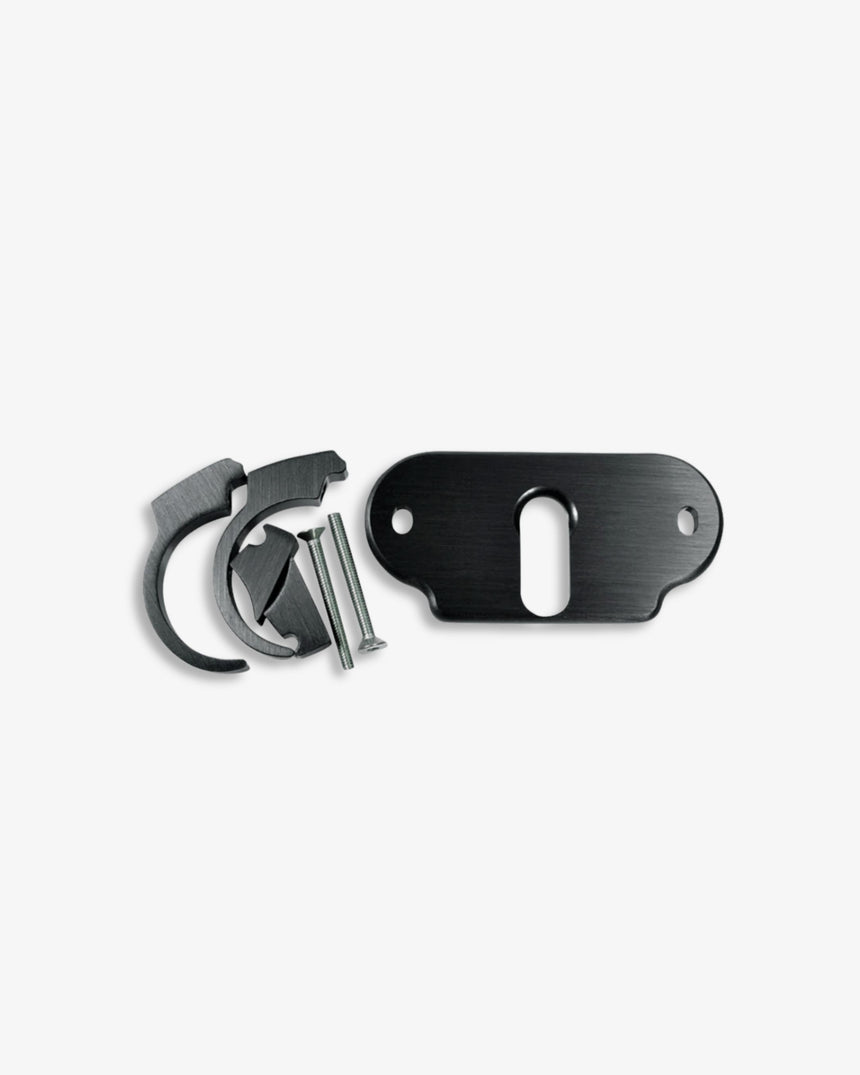

    The Combi Frame is milled from solid aluminium and anodized black. It allows the Motoscope Mini to be mounted on the handlebars using the included Mounting Plate and Handlebar Clip-Kit without needing to drill or weld. 5 indicator lights (green, blue, green, red, orange) and series resistors are already integrated into the Combi Frame The Combi Frame is supplied with approx. 50 cm of cable, screws and instructions.

    WHAT'S IN THE BOX- No Mounting Kit:
    Motoscope Mini Instrument
    75 cm connector cable
    Mini push-button
    Removable fuse
    6 cable end connectors
    Speedometer sensor (M5 x 0,5 fine-pitch thread, stainless steel, IP 68) with 150 cm connector cable
    2 powerful neodymium mini magnets
    2 mounting screws M3
    Detailed installation and operating instructions

    WHAT'S IN THE BOX - Yes Mounting Kit Included:
    Motoscope Mini Instrument
    75 cm connector cable
    Mini push-button
    Removable fuse
    6 cable end connectors
    Speedometer sensor (M5 x 0,5 fine-pitch thread, stainless steel, IP 68) with 150 cm connector cable
    2 powerful neodymium mini magnets
    2 mounting screws M3
    Detailed installation and operating instructions
    + Mounting Plate
    + Handlebar Clip-Kit
    + Long Screws
    + Motoscope Mini Combi frame which includes 5 indicator lights (green, blue, green, red, orange)
    + Integrated series resistors
    + 50 cm of cable
    + Mounting screws
    + Instructions

    DETAILED INFORMATION:
    The innovative, ultra bright 251-LED dot matrix shows the engine speed in a scalable horizontal bar graph and all other features as easily readable numeric values. With the push of a button, the engine speed (rpm) can be displayed as numerical value. Thresholds can be programmed for the display to show the maximum permissible engine speed ('red zone') or a gear shift light with all LEDs pulsating simultaneously.

    You can toggle between the different informations on the LED display by operating the provided menu push-button. Program automatically switching back to the speed value after a predetermined time. Default settings or recorded values are stored even with the power supply switched off.

    Hassle-free wiring and detailed instructions enables users without previous experience to connect this instrument. The supplied speedometer sensor easily connects to the front or back wheel — permitting easy conversions of oem mechanical speedometers. Also compatible with various original speedometer sensors (reed contact and proximity sensors) used by motorbike manufacturers. An intelligent 'teaching' function provides for easy speedometer calibration even with sensors at the gearbox.
  • Material
    Aluminium
  • Certification
    Australian Road Compliant, E-Mark Certified

Fitment

Universal

Buy with confidence! We offer a 100% fitment guarantee on our model specific parts. This means that if these parts do not fit the YMM of the motorcycles stated above then we will refund your order in full. Universal parts are not included in this guarantee and are covered under our standard T&C's.

Shipping & Returns

We ship daily from our Northern Beaches warehouse in Sydney. Express orders placed before 11am ship same day. We’ve partnered with Australia Post for our shipping options: Express (estimated delivery in 1-2 days), Priority (estimated delivery in 2-4 days) & eParcel (estimated delivery in 4-6 days). Orders over $150 are eligible to receive eParcel delivery for free. Cafe Racer Club guarantees unbeatable quality and our products are backed up by our extended 60 day returns policy. However, sale items and special order items, among others, are excluded from this policy. Learn more about our shipping and returns here.
